FOUNDER’S SERIES

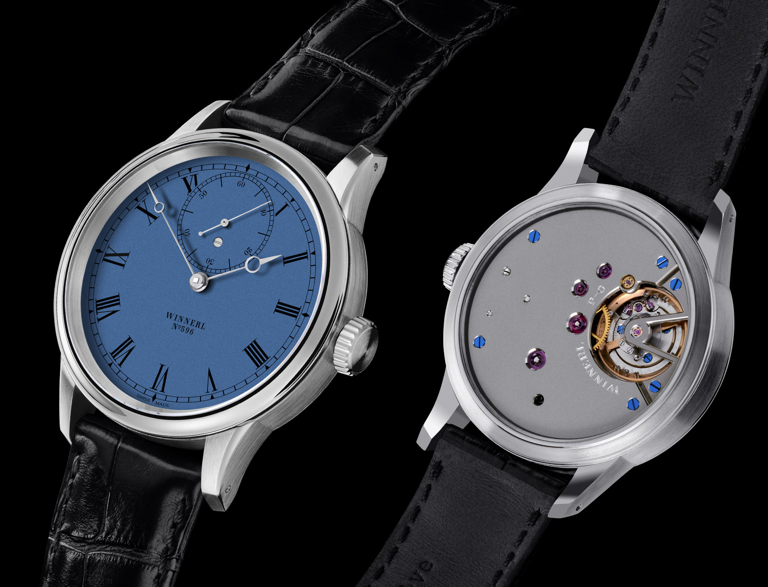

Founder’s Series № 596

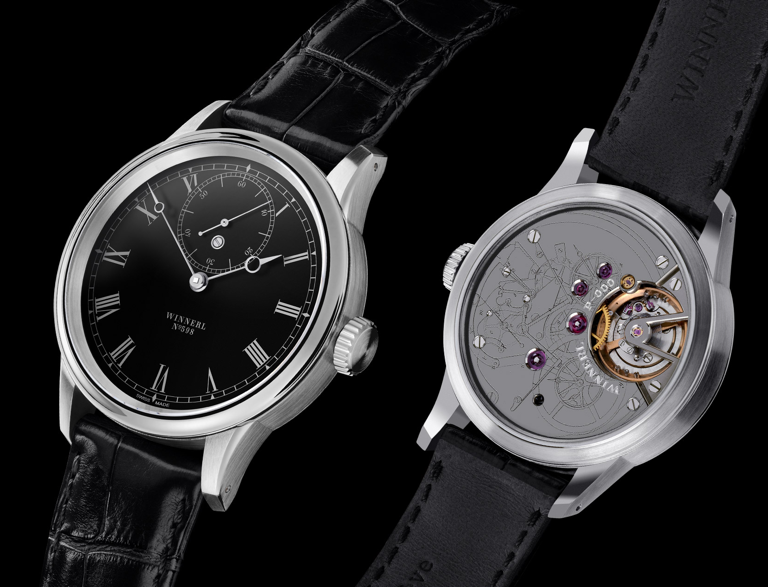

Founder’s Series № 598
18K White Gold Case, Blue Gold Dial,
Polished Steel Hands
18K Red Gold Case, White Enamel Dial,
Blued Steel Hands
Platinum Case, Black Enamel Dial,
Polished Steel Hands
Movement 3/4 Plate Finished With Geneva Stripes
Diameter: 40 millimeters
Movement 3/4 Plate Finished With Engraving
Diameter: 40 millimeters
Each timepiece marks the first use in a wristwatch of Winnerl’s specially designed balance wheel. Directly patterned after an example found in one of his ship’s chronometers, the unique, slanting sides of the balance wheel allows exceptionally fine regulation of its inertia. The large, Winnerl designed 3/4 plate surrounding it, would later be adopted by Adolph Lange after finishing his apprenticeship with Winnerl. This plate construction, in addition to providing great stability to the movement, also visually highlights the unique balance construction.
The versions shown here will never be repeated, even after serial production begins. The Founder’s Series represents the first steps in restoring Winnerl’s legacy to its proper place in the 21st century, and are therefore an integral part of his history.

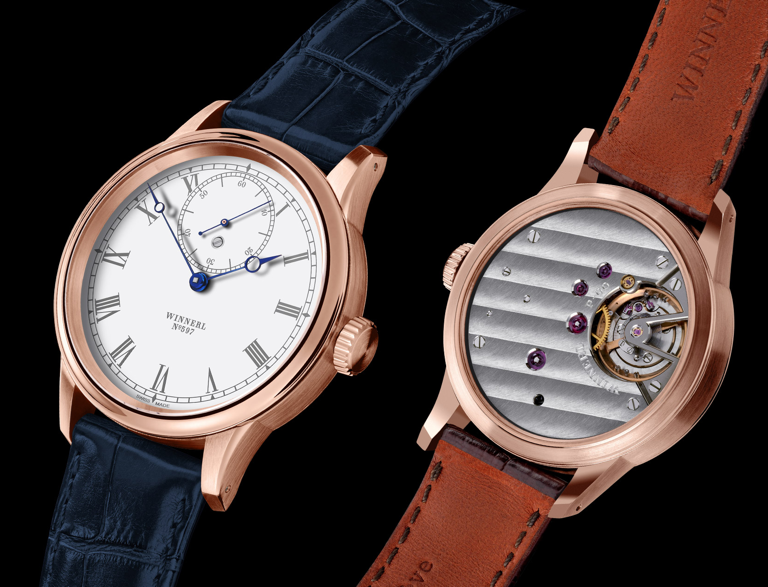

Founder’s Series № 597
Movement 3/4 Plate Finished With Silver Grainage
Diameter: 40 millimeters
TECHNICAL SPECIFICATIONS
CASE
Diameter
Thickness
Glass (front and back)
Water resistance
Strap attachment
40.00 mm
10.35 mm
Sapphire with anti reflective coating
100 meters
Screwed and sprung safety fastening
STRAP
20.00 case / 18.00 buckle
BUCKLE
Specially designed ‘flat line’ buckle
MOVEMENT
Diameter
Thickness
Power reserve
Total No. of jewels
Total No. of parts
33.00 mm
4.30 mm
32 hours
21
93
BALANCE
Material
Diameter
Height
Angle
Weight screws
Regulation screws
Hairspring
Beryllium copper
13.00 mm
1.00 mm
45°
4 x in white gold
4x in steel
Breguet overcoil
WARRANTY
2 years
